Options for the WAW@2017

CHOICE OF MAIN FIBER USED IN BODY

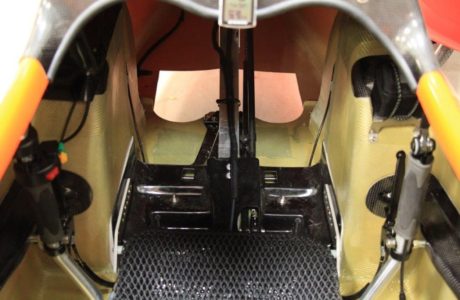

AF: aramide (kevlar), reinforced with carbon. Tough and increased safety.

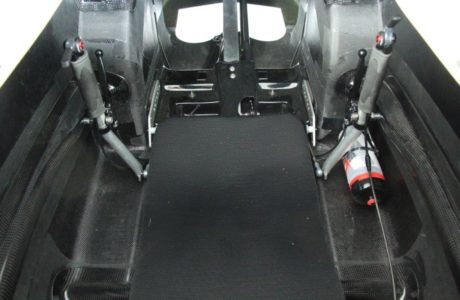

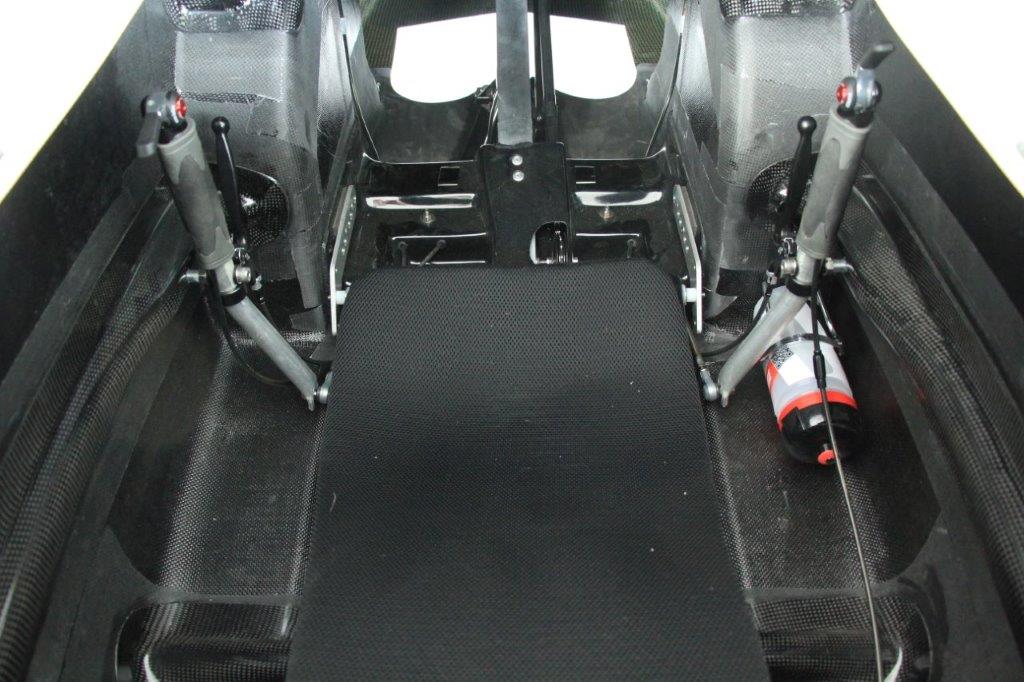

CF: full carbon version. Light and stiff but more fragile.

GF: glass fiber, reinforced with carbon. Cheaper and easy to repair. Heavier and less stiff

OPTIONS IN COLORS

Two color version, choice between standard colors for upper and lower part

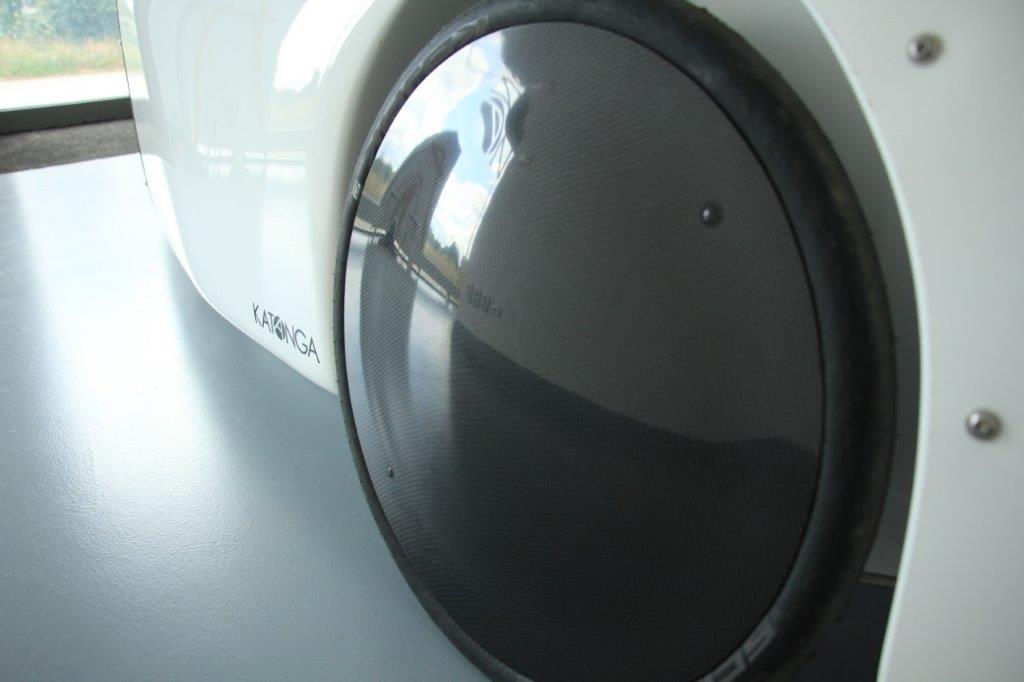

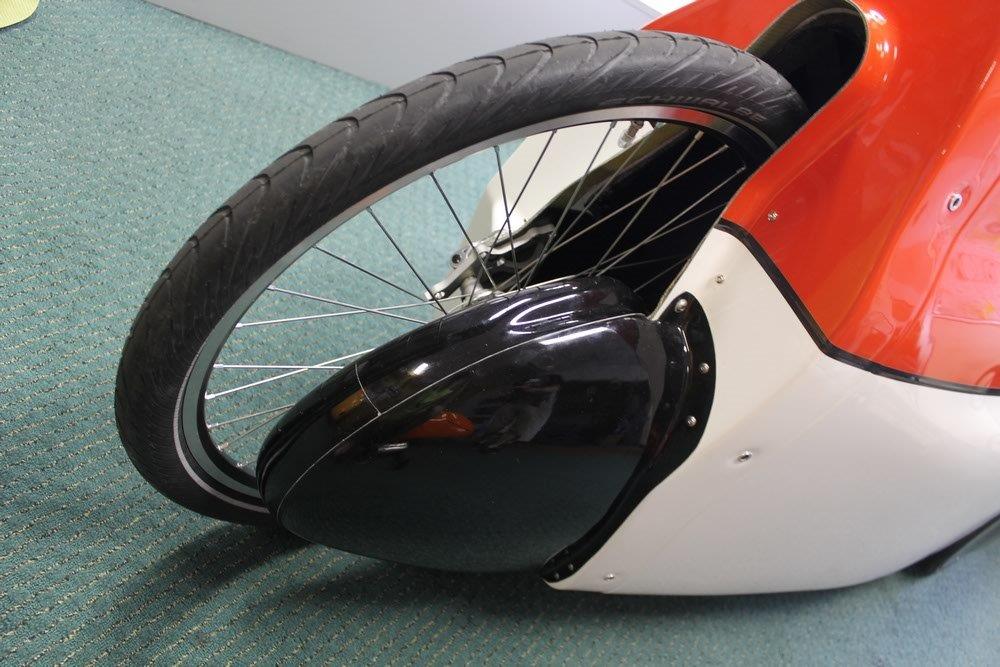

Wheel covers in visible carbon instead of same color as body

Top in visible carbon (only for full carbon version)

OPTIONS IN BODY PARTS

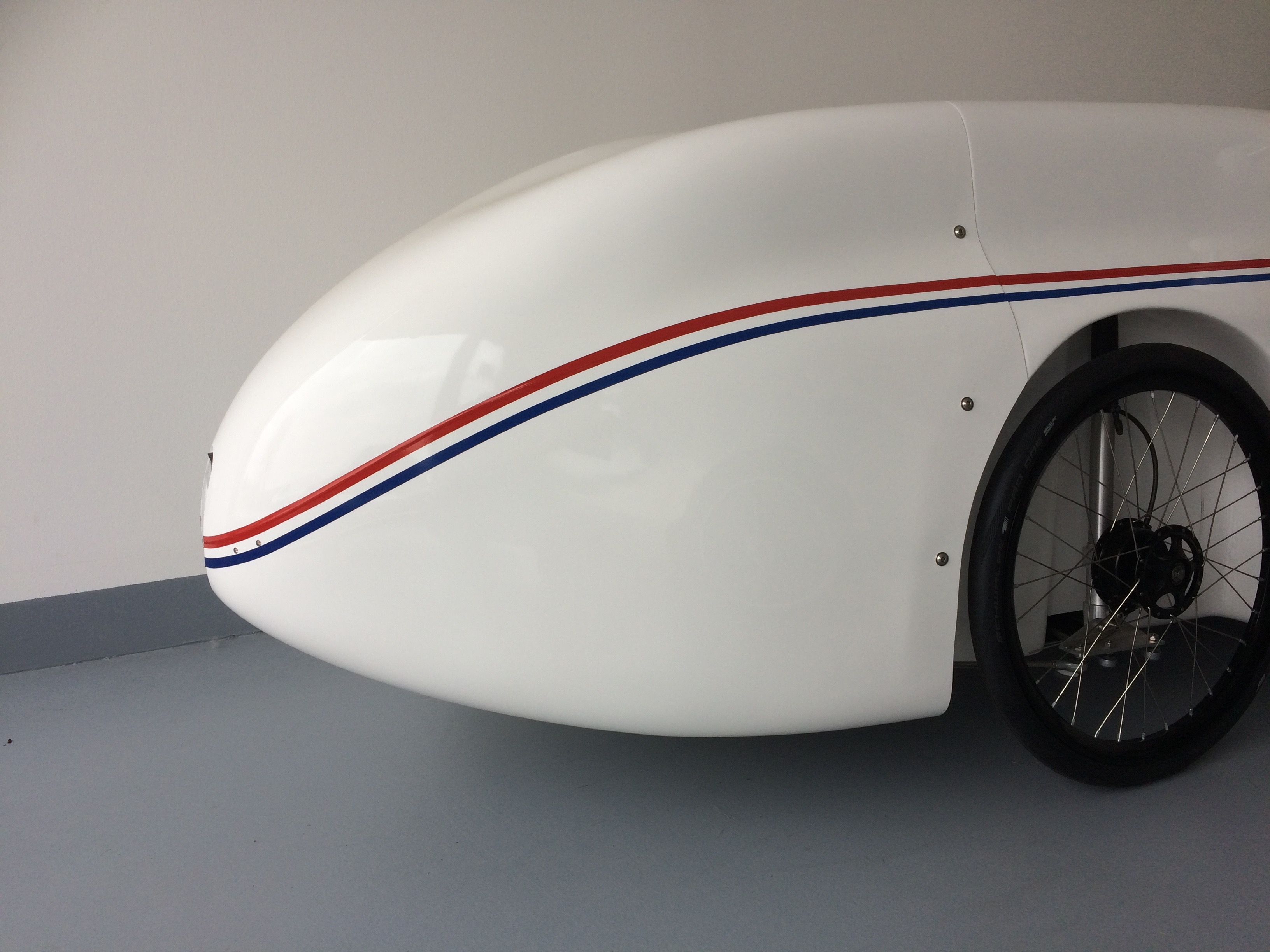

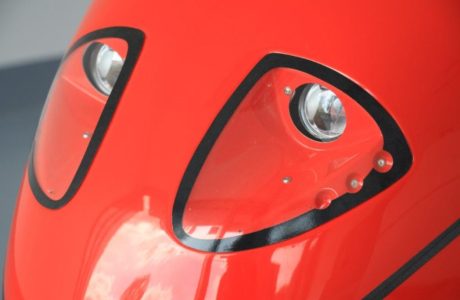

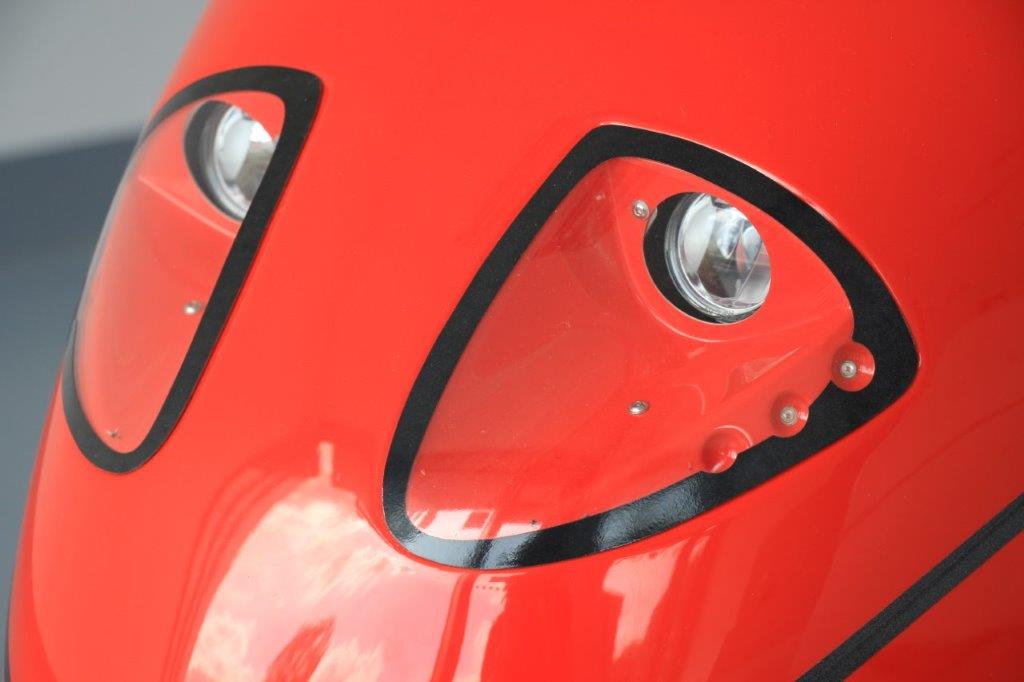

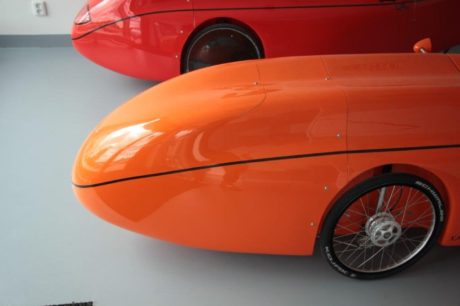

Nose N2, with integrated head lights, standard size

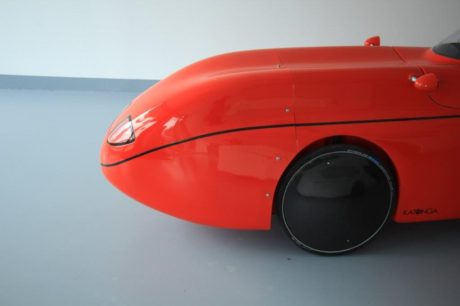

Nose N3, with integrated head lights, compact size (max 180cm), no foot hole cover needed

Nose with lid (storing of light lugage like sleeping bag), only available for N1

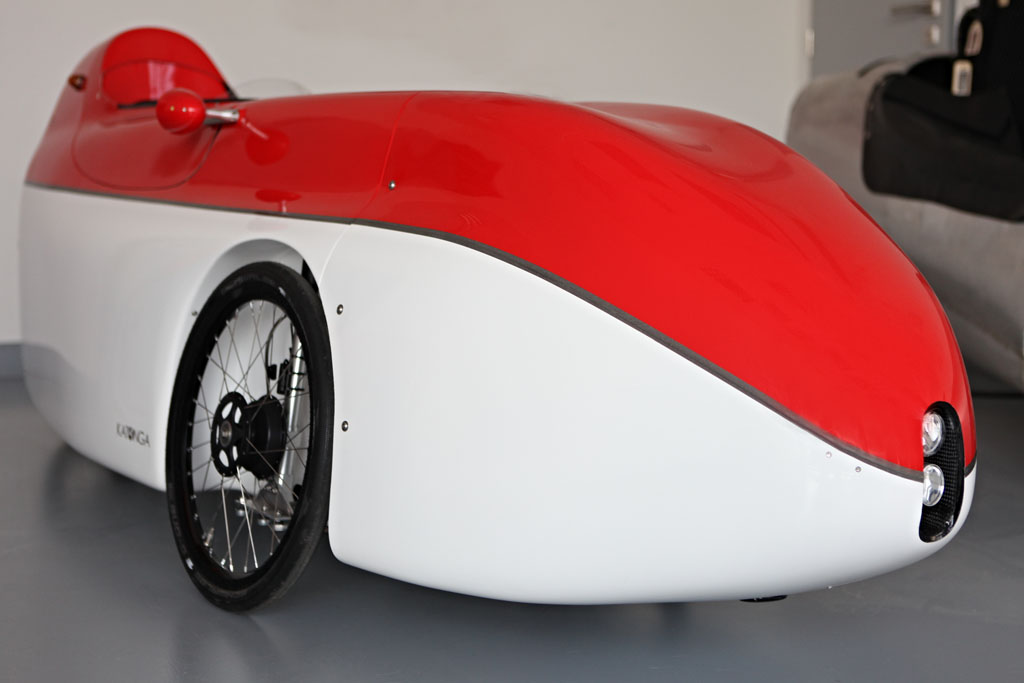

Nose with SPAI (Stagnation Point Air-Intake), avalaible for N1, N2 and N3

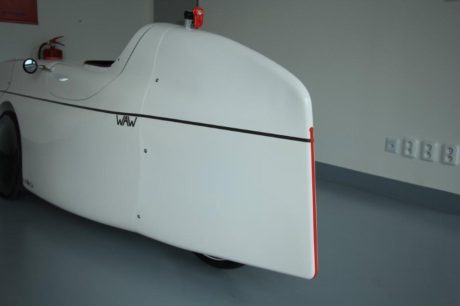

Tail T2, straight, aero

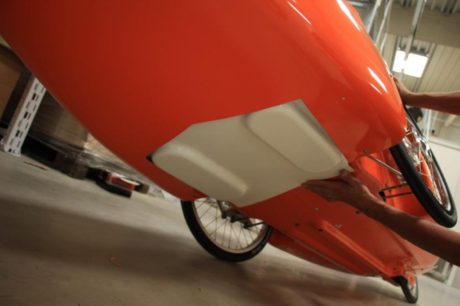

Aerodynamic foot hole cover, not needed with N3

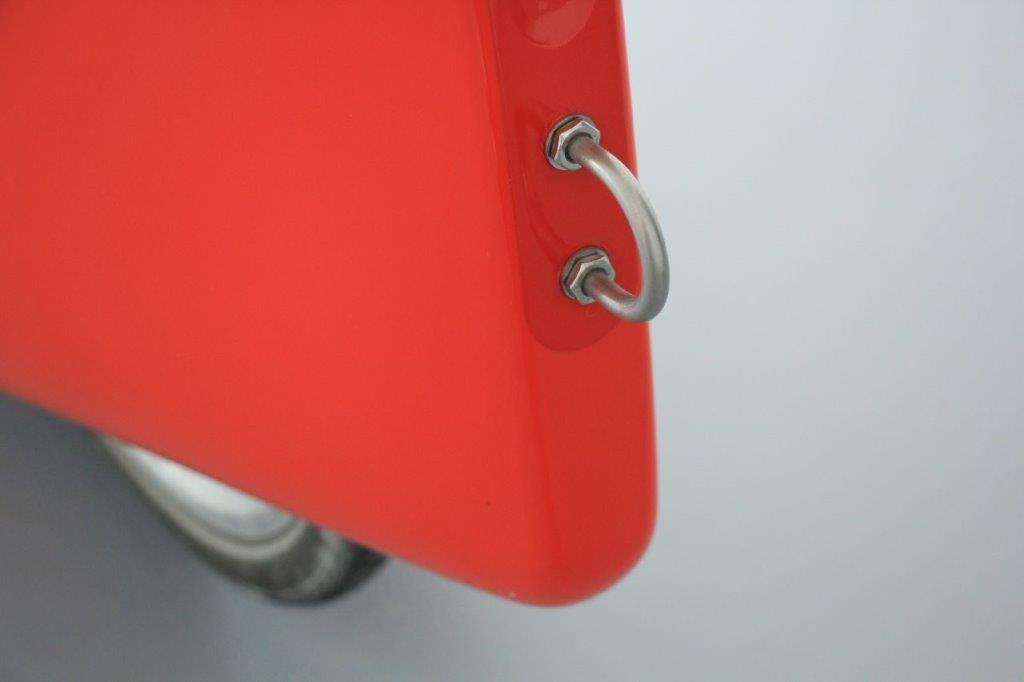

Eyelet in tail for lock or lifting

Tail T3 for rear suspension, with integrated rear light

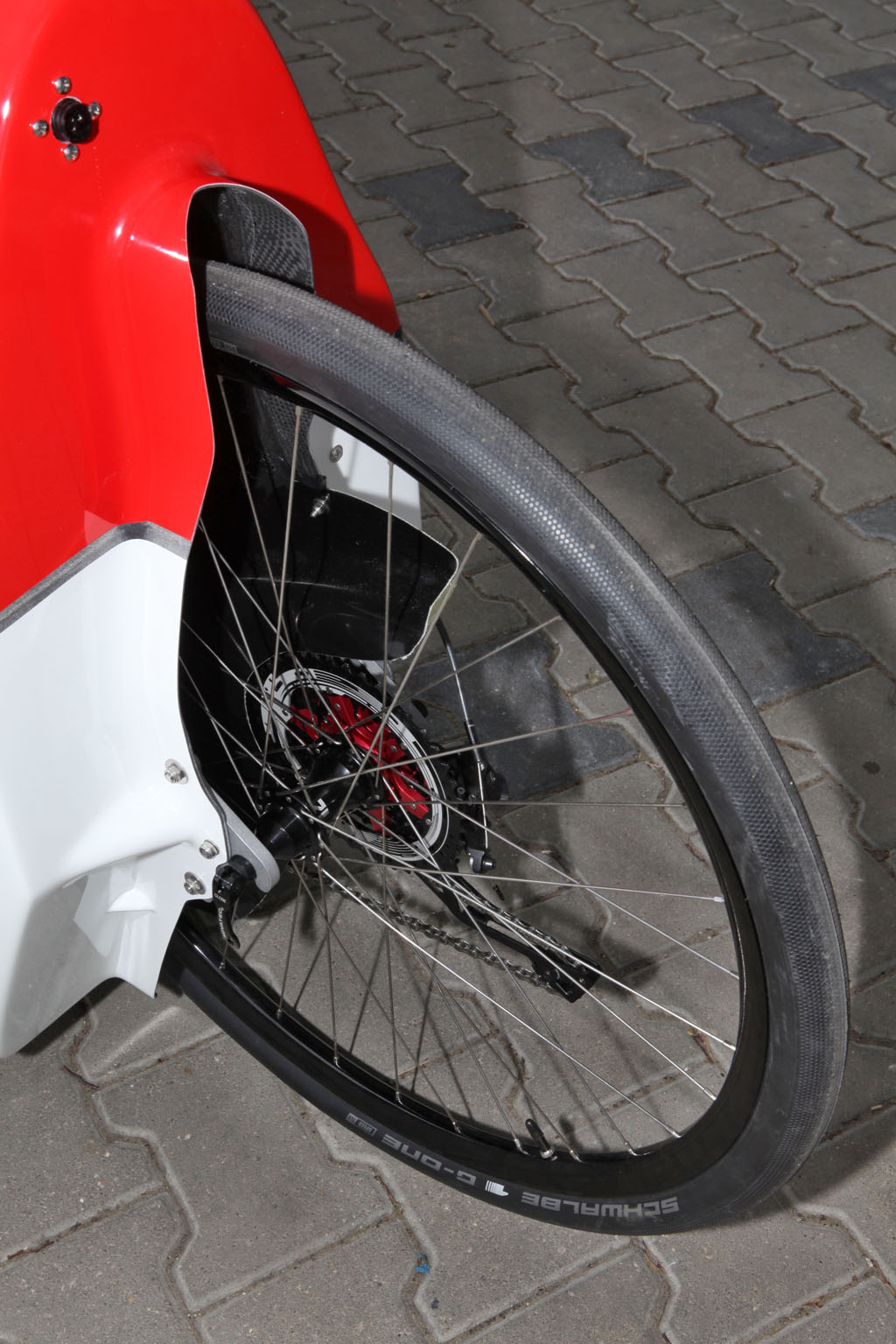

Chain protection in the rear, keeps chain free of dirt

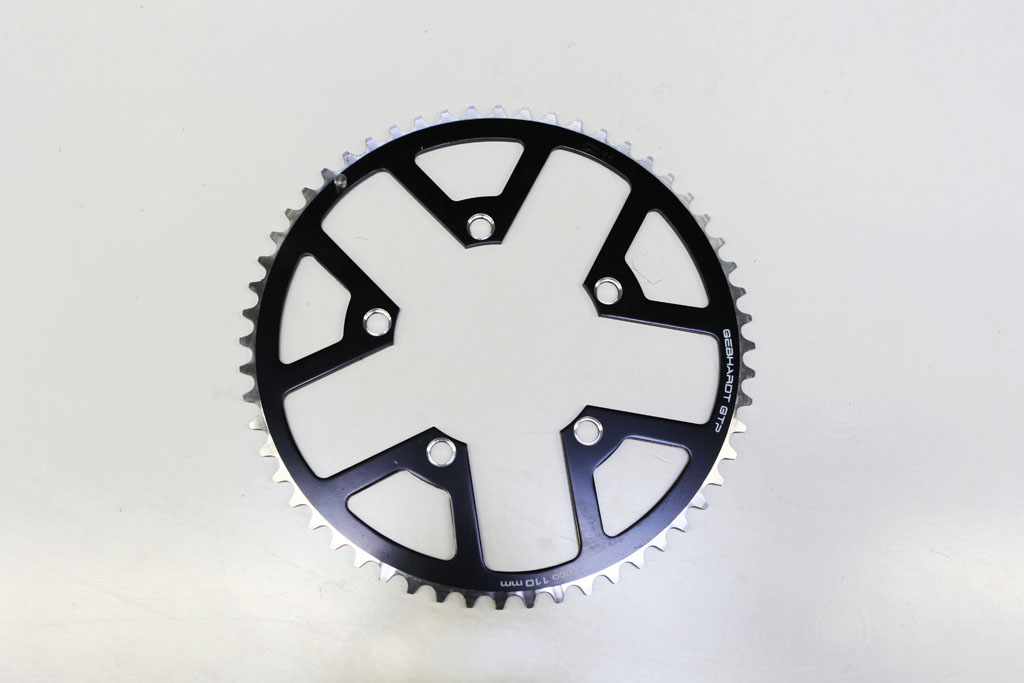

OPTIONS IN TRANMISSION INSTEAD OF STANDARD TRANSMISSION

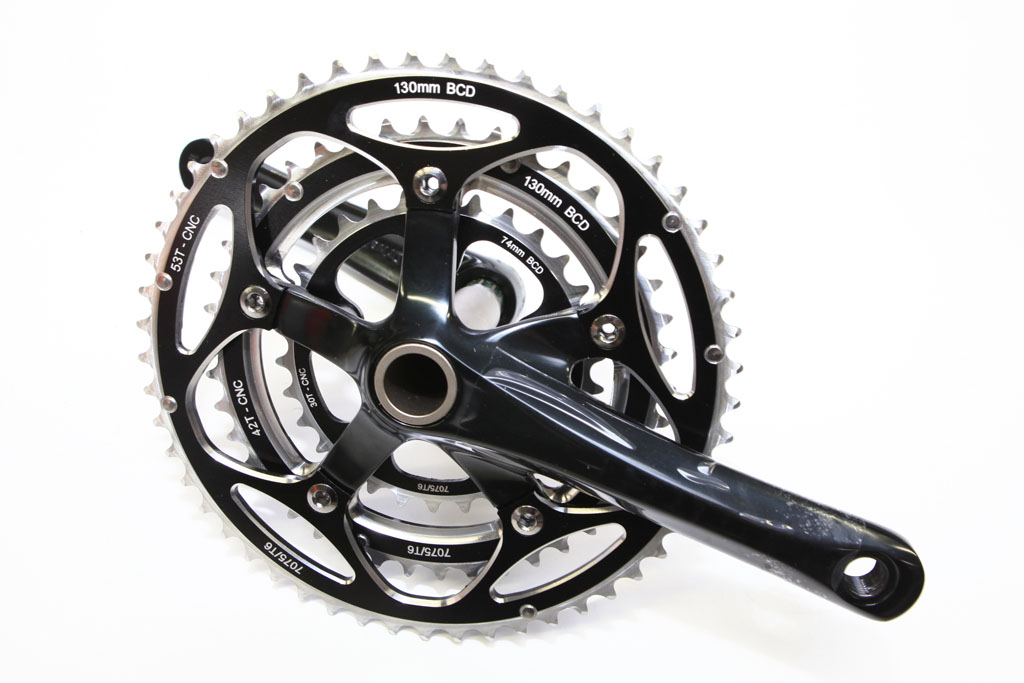

Cranks 160mm and 170mm for triple or 155mm for single chain wheel instead of standard 170mm

SRAM Dual Drive 3 x 9, top + speed shifter, one front chain ring, rear 11-34t

Schlumpf mountain drive, straight 155mm cranks, single chain ring.

Flat rear casette for 9spd, 9spd 11-34t, 10spd 11-32t, 10spd 11-36t

Rohlof speed hub, single chain ring

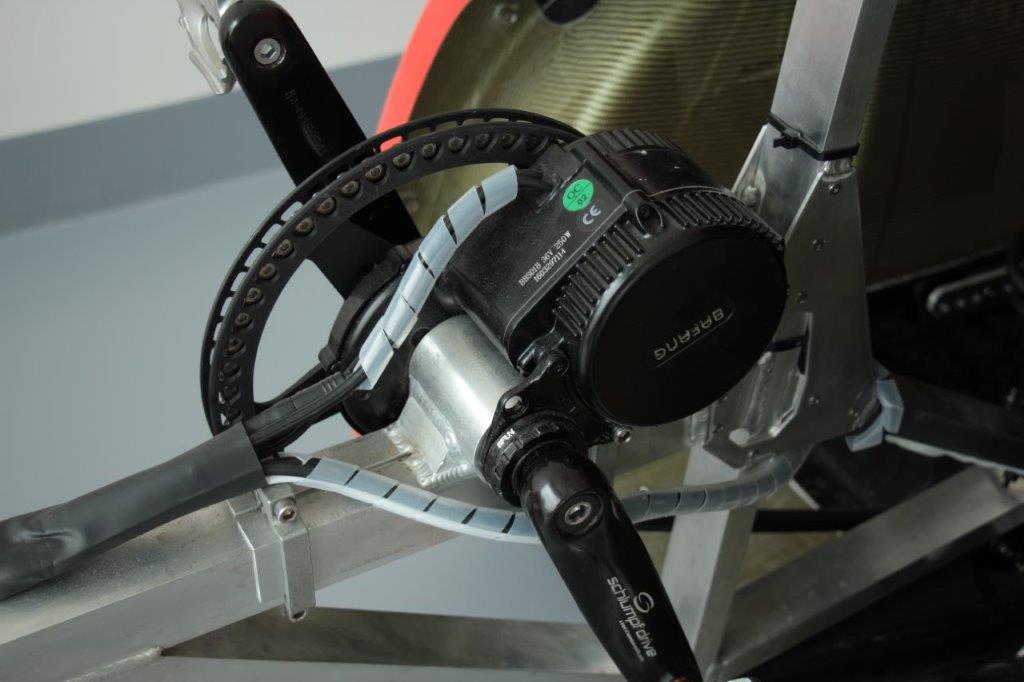

Pre-mounted kit for electric assistance including 250W BAFANG mid drive engine, 36V 14.5 Ah Li-Ion battery pack, loader for battery, display. Single chain ring in front.

OPTIONS IN ELECTRO

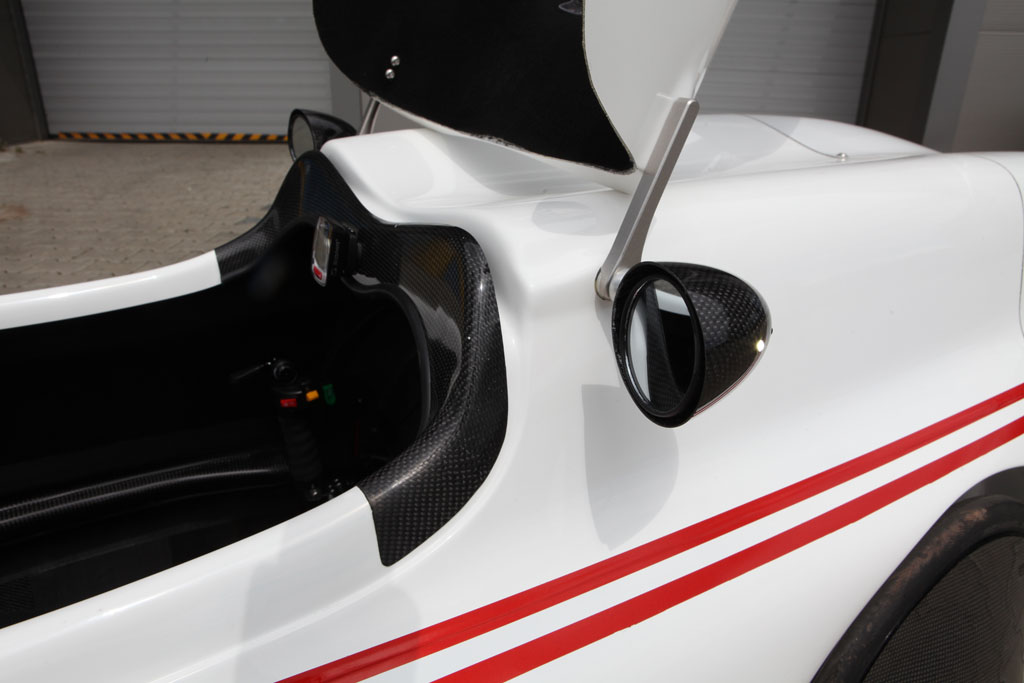

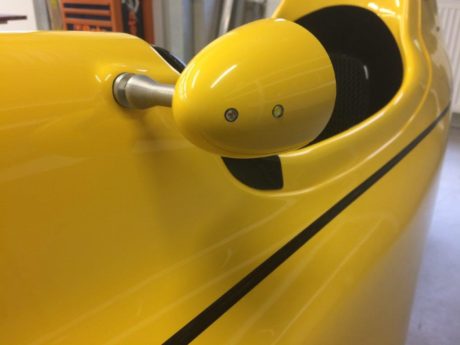

Extension with daylight LEDS and turning lights in mirror caps

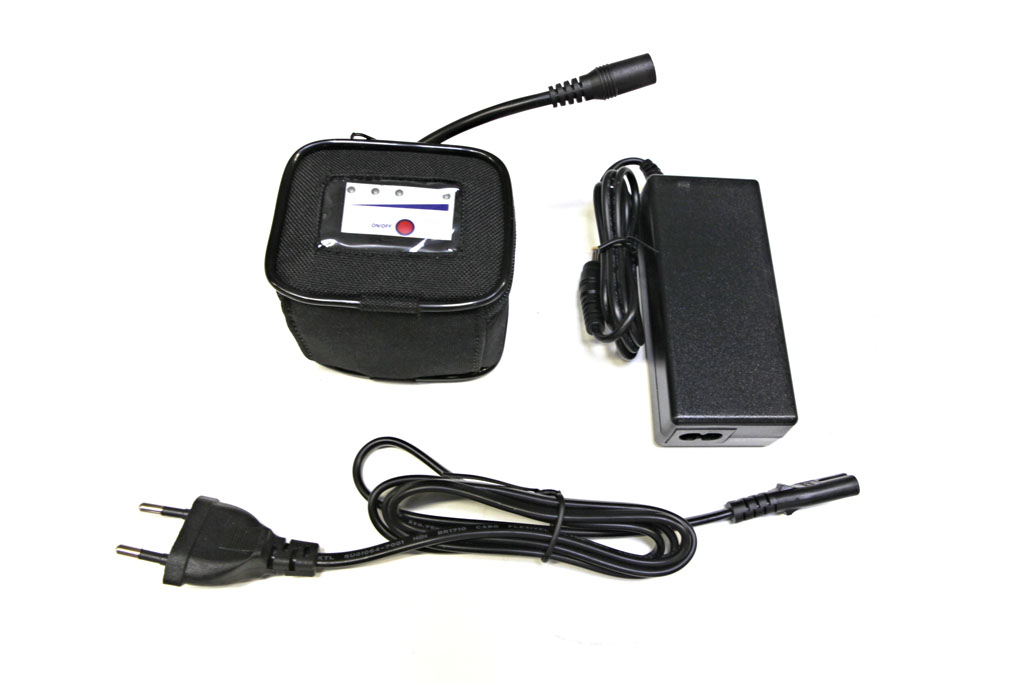

Extra 11.1V 6.6 Ah Li-Ion battery in protection bag with loader

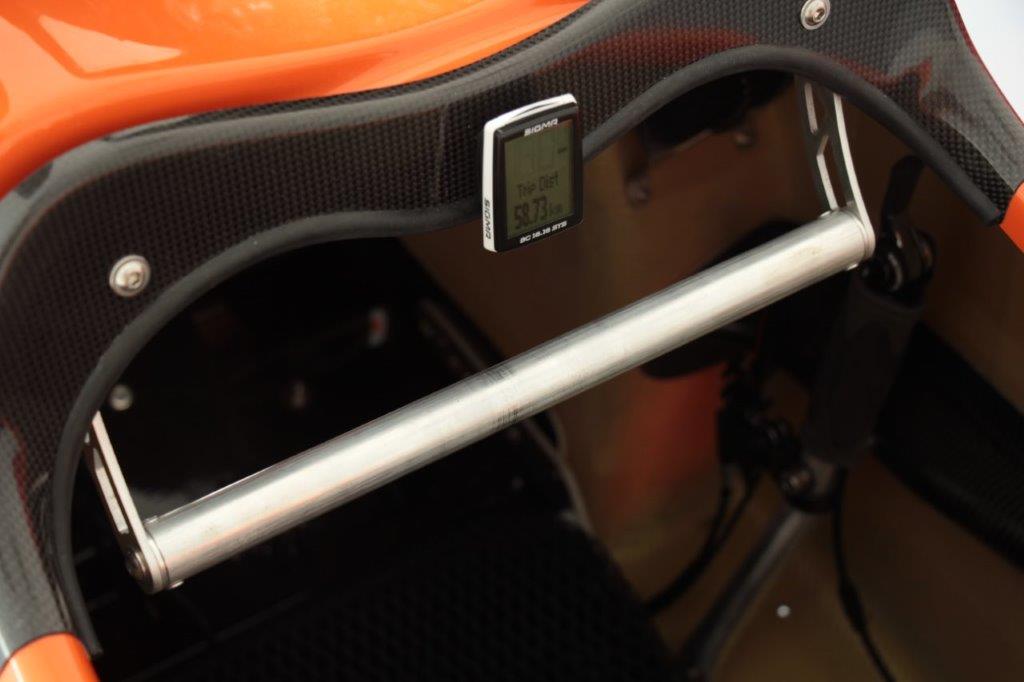

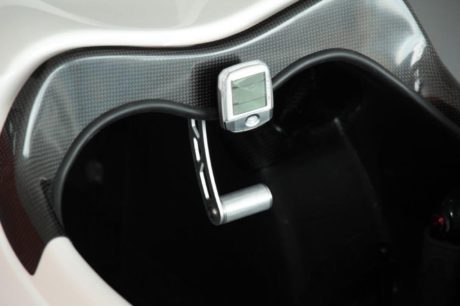

Standart GPS holder

GPS/smartphone holder for those who order engine

Socket for USB loader in front of GPS/smart phone holder

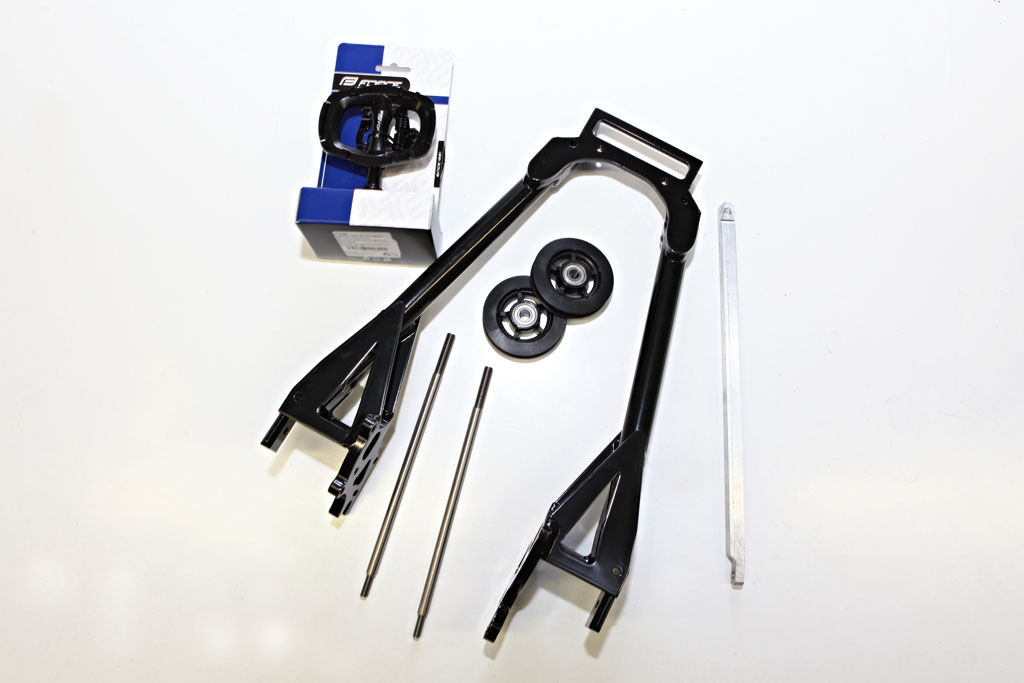

OTHER OPTIONS AND ACCESSORIES

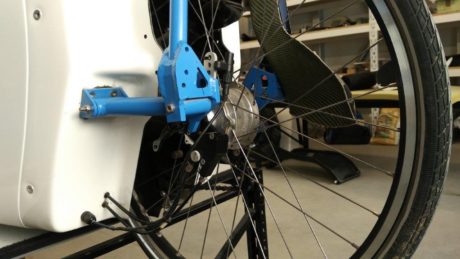

Rear suspension, virtual pivot, air/oil Suntour Epixon LO-R shock

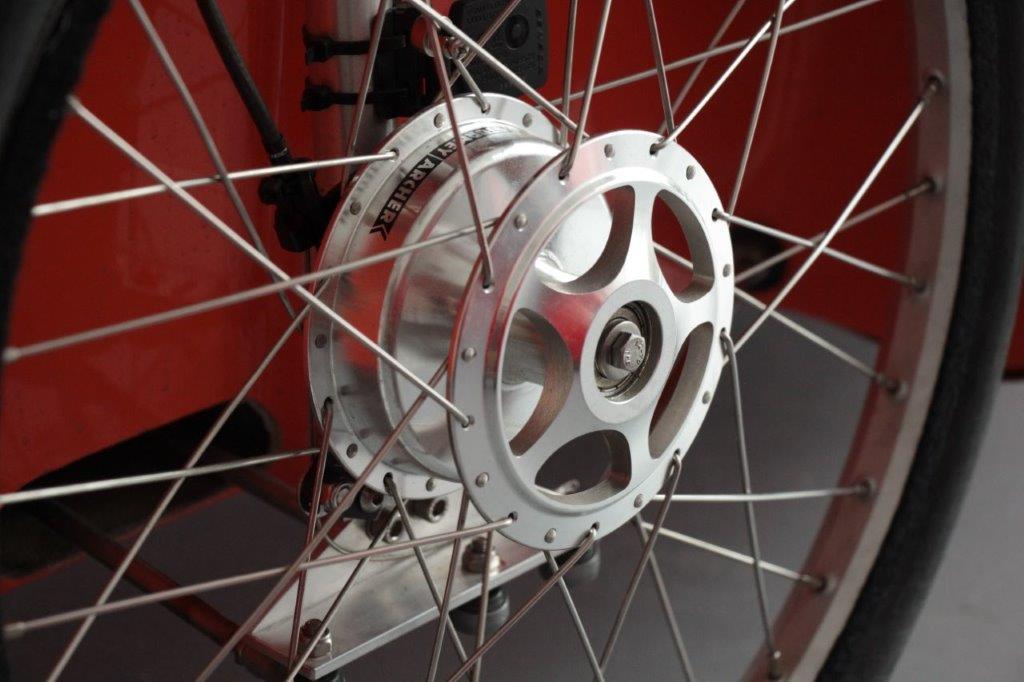

90 mm SA brakes

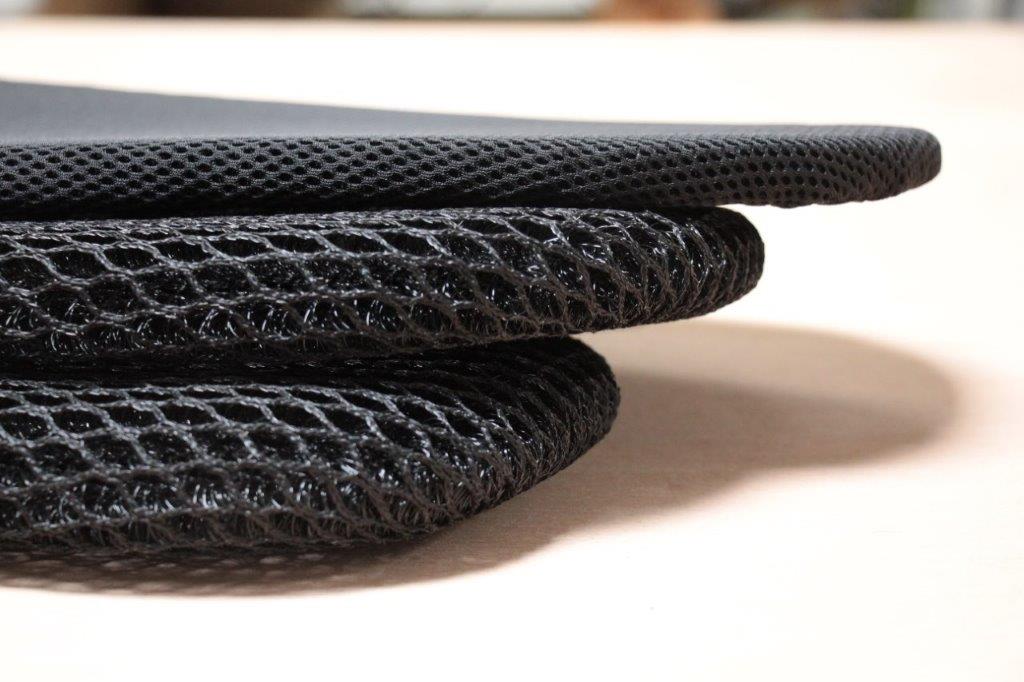

Ventisit sport (one layer), Ventisit standard (2 layers), Ventisit comfort (3 layers)

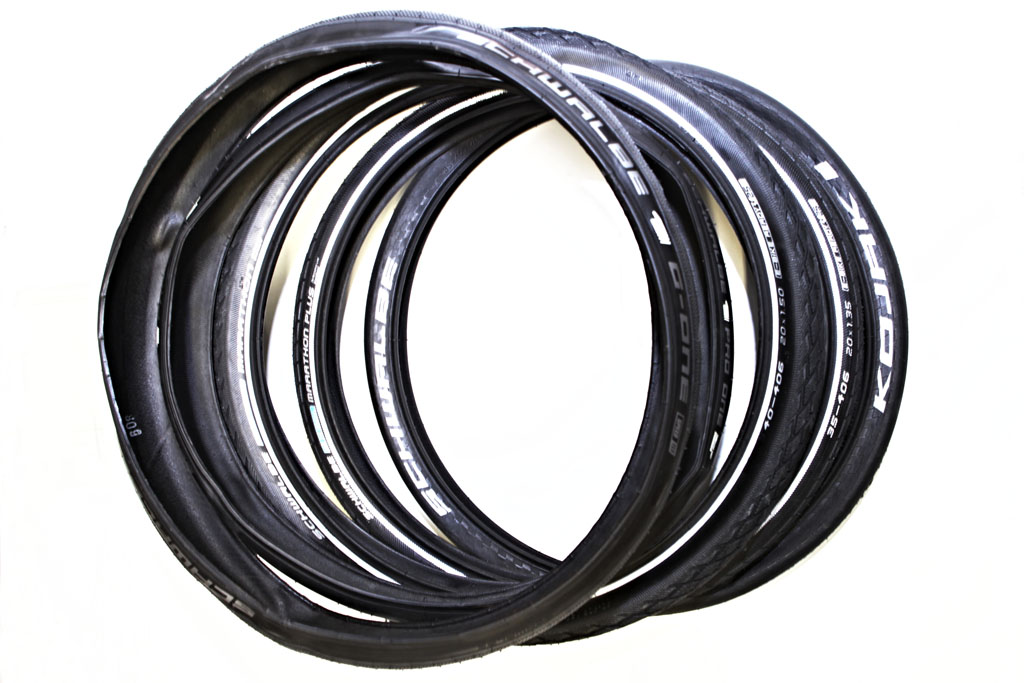

Durano 28mm, Marathon Plus 35mm, Kojak 35mm

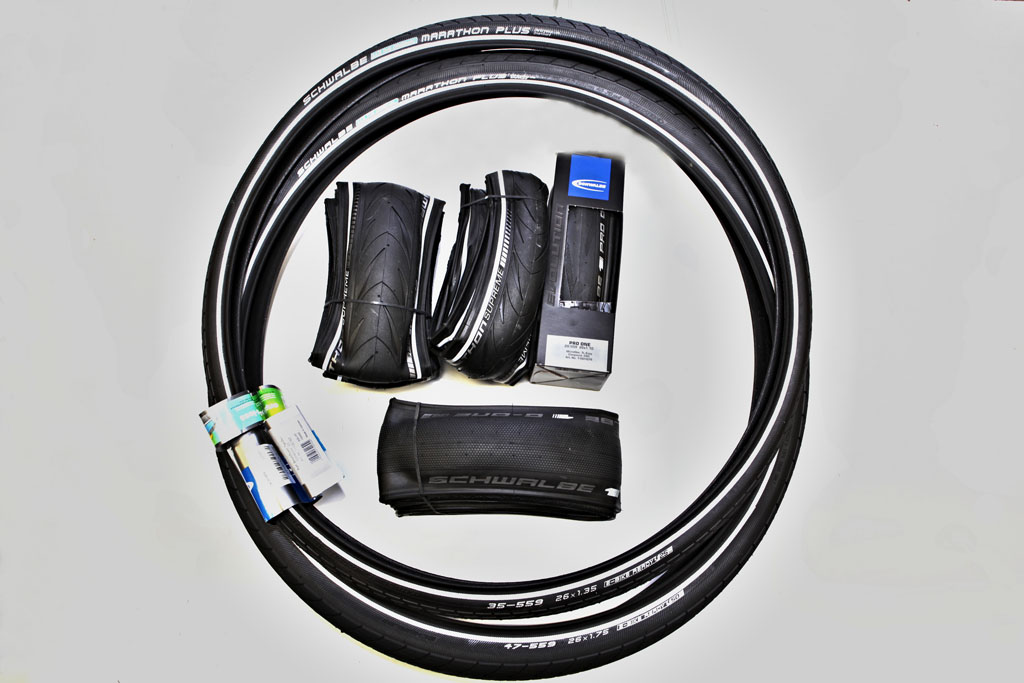

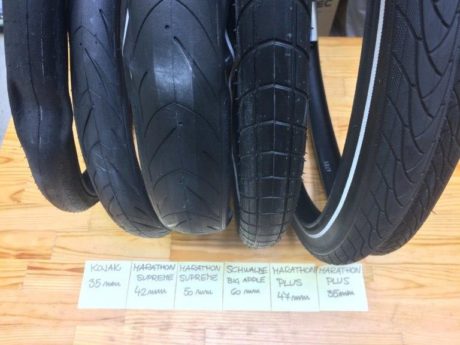

Kojak 35mm, Marathon supreme 42mm, Marathon supreme 50mm, Schwalbe Big Apple 60mm, Marathon plus 42mm, Marathon plus 35mm

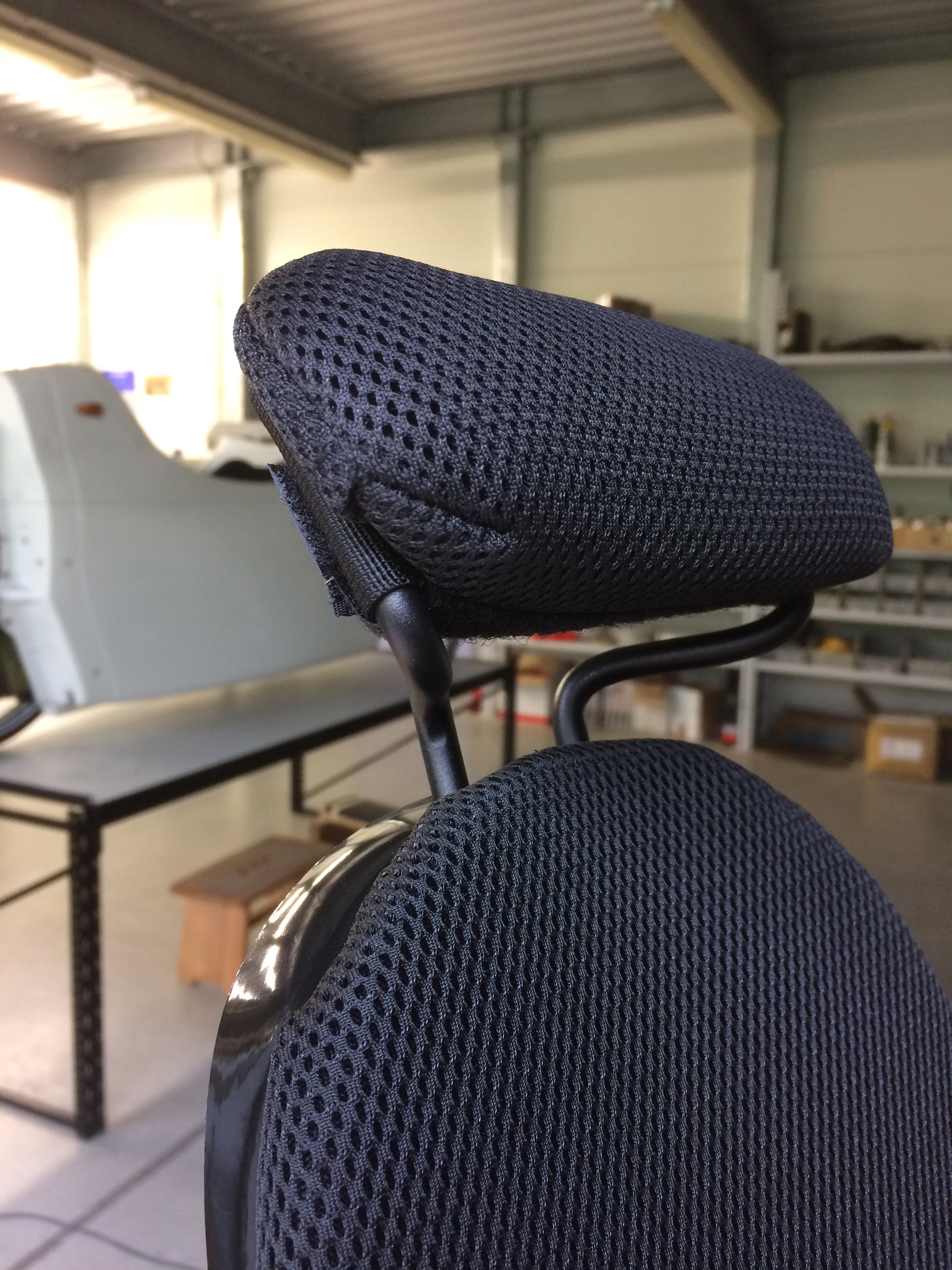

Head rest mounted on seat

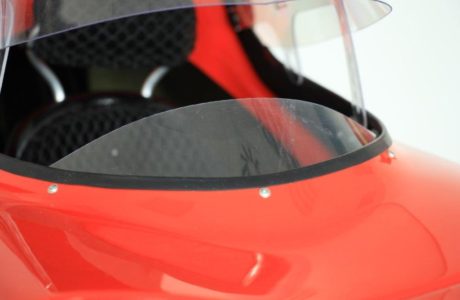

Mini-visor for summer riding + reserve

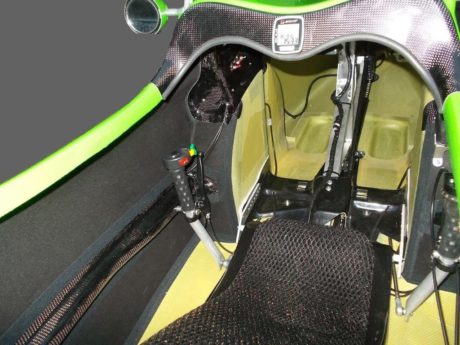

Interior lining in acoustic felt (lining in cover and race hood already in the standard)

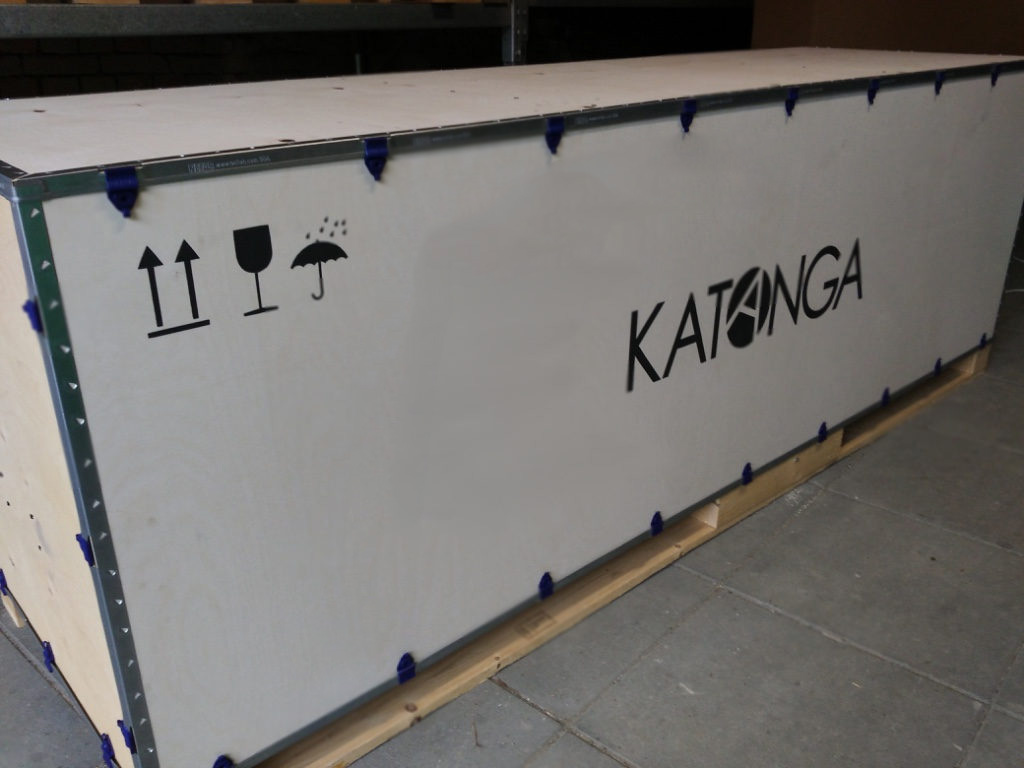

Re-usable ply-wood crate for safe expedition
